CDI Crystal XPS

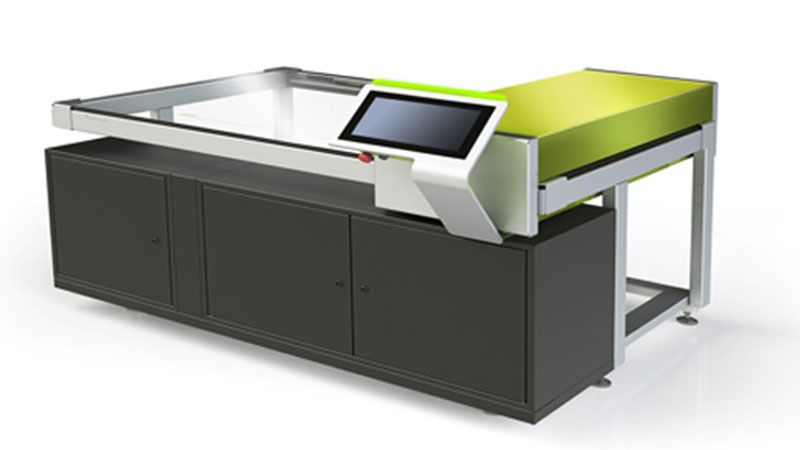

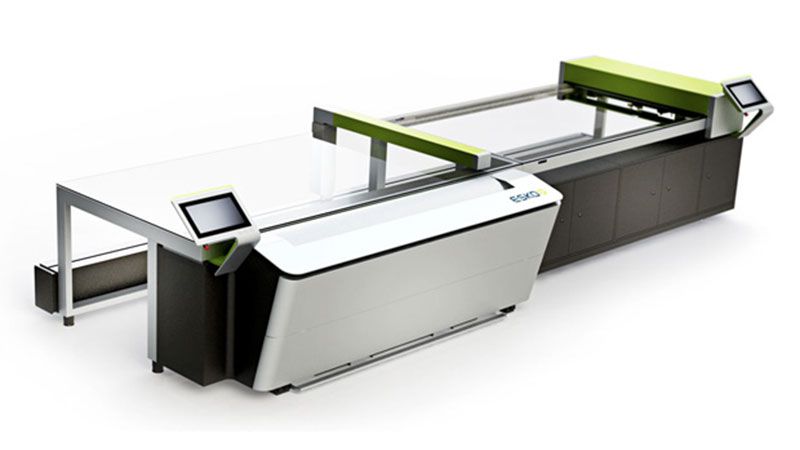

Cyrel Digital Imager (CDI) with XPS Crystal Exposure Device
CDI Crystal XPS
Cyrel Digital Imager (CDI) with XPS Crystal Exposure Device
The combination of Cyrel Digital Imager (CDI) with XPS Crystal exposure device can simplify the workflow of flexo plate making since it reduces manual steps, thus achieving a perfect and easy printing operation.
CDI Crystal XPS offers high efficiency due to:- 50% of manual steps are reduced
- 50% of errors reduction results in less plate waste
- 73% of operation time is saved
Technical Specifications of XPS 5080
| Control system | XPS Touch GUI on Intel PC with Windows |
| Plate type | All types of common flexo plates Usable plate thickness: 0.030” to 0.255” / 0.76mm to 6.35mm |
| Plate size | 50"*80"/1270*2032mm |
| Machine dimensions | Width: 122.04"/3100mm Length: 77.04"/1957mm Height: 53.85"/1368mm Weight: 1764 Lbs/800kg |
| Installation requirements | XPS 5080: L1/L2/L3/N/PE400 VAC 50 Hz /460 VAC 60Hz,9.0kW Chiller: L1/L2/L3/N/PE 400 VAC 50Hz/460VAC 60Hz,9.0kW |
A New Flexo Plate Making Process with more simplicity and higher automation level
Pre-printing Operation → CDI Laser Imaging → XPS Simultaneous Main and Back Exposure → Cleaning & Drying → Post-processing
